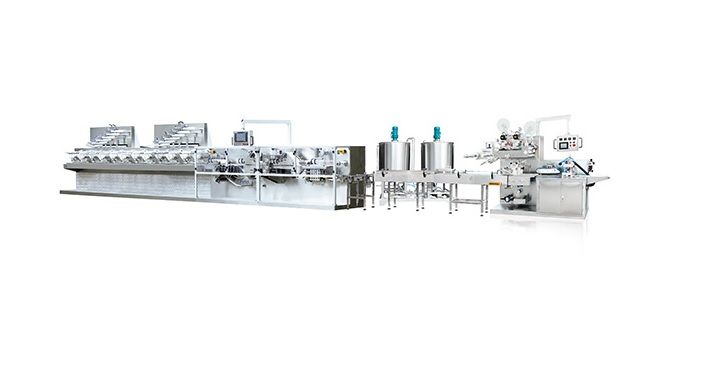

Full-Auto Wet Tissue Paper Folding Packing Production Line
Wet tissue papers are very useful and you can use them for several purposes. These can help you remain fresh as well as clean and also maintain the right hygiene. These tissue papers have a longer lifetime and they come in scented varieties as well.
Main Features:
- Folding way: “Z” “W” “C” shape.
- Wetting system: Double tanks with agitators. A wetting system with a continuous mixing system, circulating system, the maximum flow rate of fluid volume can be adjusted to 20L/min.
- Mitsubishi Servo system control.
- Sheet counting and stacking unit, servo motor adopted for easy adjusting quantity.
- Automatically monitoring the raw material. When the material lack in the shortest time, it can automatically stop the machine to avoid the loss of material.
- Emergency braking system
- Counting automatically and automatically record the date of manufacture.

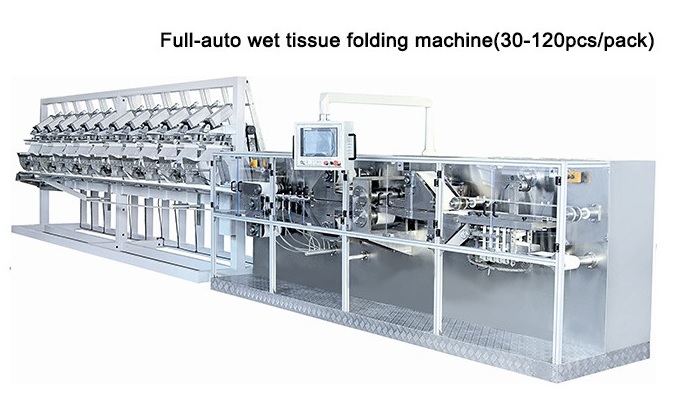

Machine Detailed Pictures
Technical Parameters
| Power: | 380V 50HZ |
| Power supply: | 13KW |
| Speed: | 2500-3200pcs/min |
| Unfolding size(mm): | (120-250)×(150-250) (L×W) |
| Folded size (mm): | (120-250)×(90-120) (L×W) |
| Folded type: | Pop up or Non-Pop up(Adjustable)“Z”“W”“C” |
| Suitable material: | spunlace |
| Raw material width(mm): | 180-220 |
| Product type: | baby wipes, dress up wipes, lady wipes, cleaning wipes |
| Suitable material: | spunlace |
| GSM: | 40 -80g/m2 |
| Installation space(mm): | 10000X3000X2400 (L×W×H) |
| Weight: | 9T |

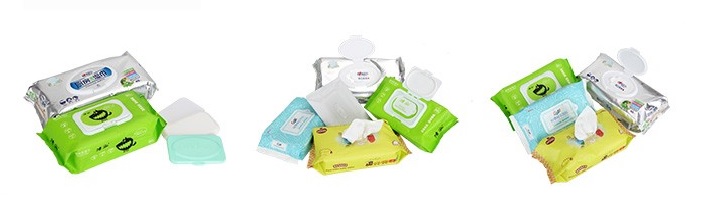

Samples
