Full Servo Puerperium Sanitary Napkin

January 4, 2024

Sanitary napkin production line includes main machine, glue applicates, packing system and other accessory equipment’s include air compressor, vision detection system and metal detection machine etc. Sanitary napkin machine can produce Three-pieces type ,blue chip, ultra-thin core and cotton core 2 in 1

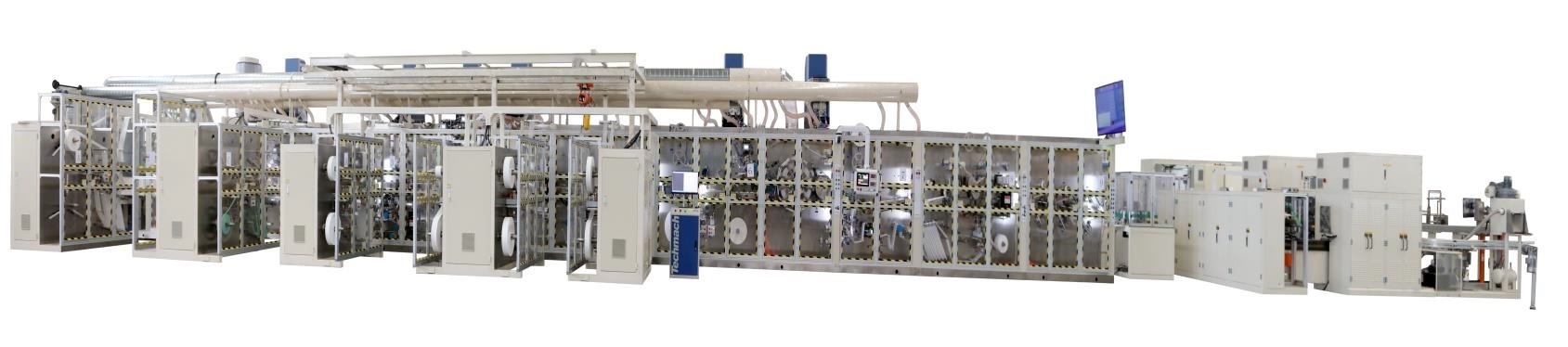

Full Servo Puerperium Sanitary Napkin 1

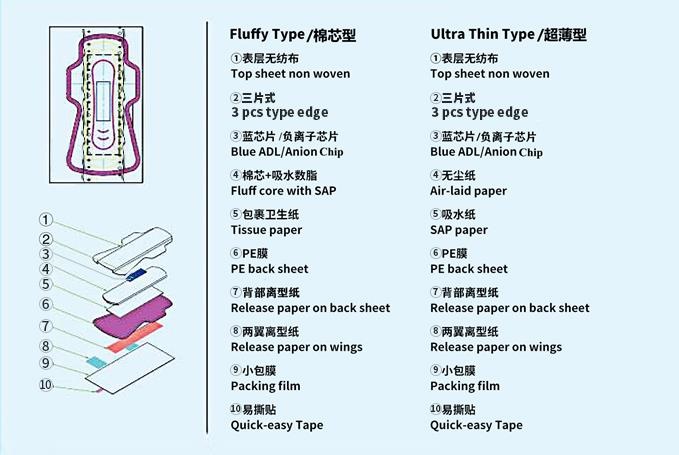

Product Drawing

Full Servo Puerperium Sanitary Napkin 2

Machine main parameters

1 Design speed 1500pcs/min
2 Working speed 1000-1200 pcs/min (ultra thin)
3 Qualified rate 98% (calculate based on 7.5 hours, the rate between qualified products and total production quantity, except substandard products caused by glue applicator error)
4 Production efficiency ≥90% ( calculate based on 7.5 hours, the rate between real production quantity and theory production quantity)
5 Capacity 370KW+60KW (Main machine/glue applicators)
1: The power consumption of the main machine during normal production is calculated at 75%;
2: The hot melt glue machine uses full power in the heating stage, and it belongs to the temperature compensation stage after it is ready.
6 Power Three phases four wires 380V/50Hz (ground wire)
7 Wire 3×150mm2+1×70mm2+1×25mm2
8 Lowest pressure 6 kg/cm2 ≥0.8mpa
9 Air compressor 2.8 m3/min
10 Total weight About 70 tons
11 Machine size 27×1.9×4.8 M (L×W×H)
12 Working space 35×10×5.5 M (L×W×H)
13 Machine color The panel and the main conveying device are all made of stainless steel, medical grade standard
Rice white, can be customized special color
14 Product size One size (according to order)
15 Containers 5×40HQ
16 Packaging PE cover packing in container



Main configuration

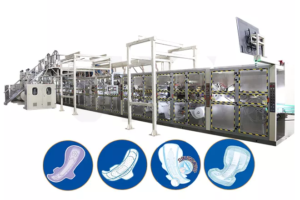

1.Full servo sanitary napkin main machine,
Full Servo Puerperium Sanitary Napkin 3
2.Japanese Mitsubishi servo motors
Full Servo Puerperium Sanitary Napkin 4

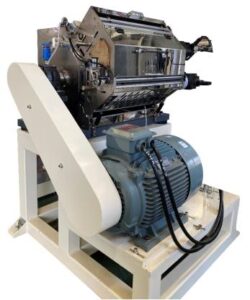

3. High speed sawmill crusher 800KG/H
Full Servo Puerperium Sanitary Napkin 5

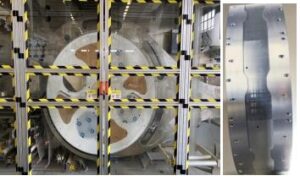

4.Drum former using etched stainless steel mesh
Full Servo Puerperium Sanitary Napkin 6

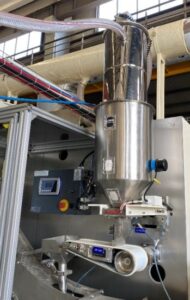

5.SAP feeding unit set on ground(servo control)
Full Servo Puerperium Sanitary Napkin 7

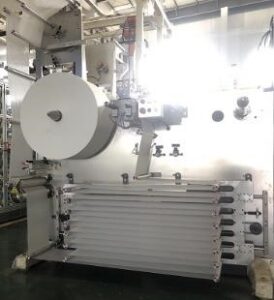

6.Raw material auto unwinding, auto tension control, auto detecting, auto splicing and auto rejecting device
Full Servo Puerperium Sanitary Napkin 8

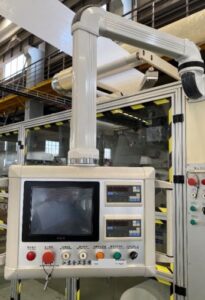

7.Touchable screen
Full Servo Puerperium Sanitary Napkin 9

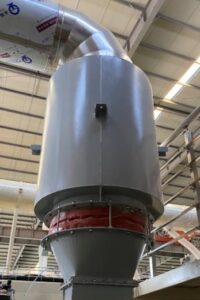

8.Noisy reduce cabinet

Full Servo Puerperium Sanitary Napkin 10

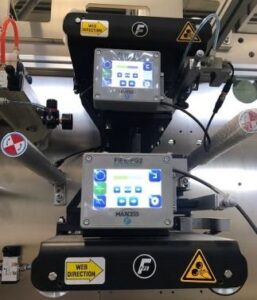

9.Auto web guider

Full Servo Puerperium Sanitary Napkin 11

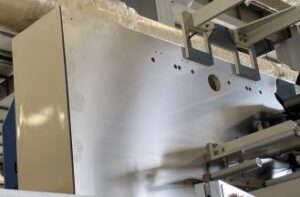

10.Main panel covered with stainless steel 2.0
Full Servo Puerperium Sanitary Napkin 12

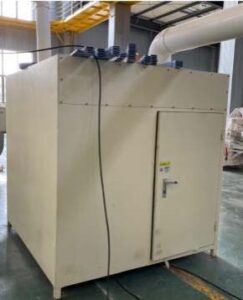

11.Waste raw materials collect unit

Full Servo Puerperium Sanitary Napkin 13



12.Air conditioning electric cabinets
Full Servo Puerperium Sanitary Napkin 14

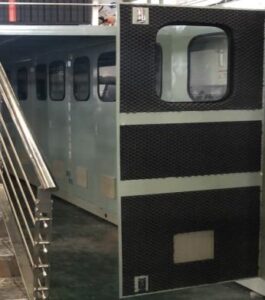

13.Machine backside foam treated to reduce noise

Full Servo Puerperium Sanitary Napkin 15



14.Safety door , the back doors of the machine has sound proof foam
Full Servo Puerperium Sanitary Napkin 16

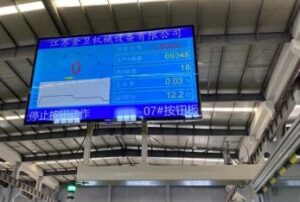

15.70’ LED screen

Full Servo Puerperium Sanitary Napkin 17



16.Mobile Remote Control Module
Full Servo Puerperium Sanitary Napkin 18

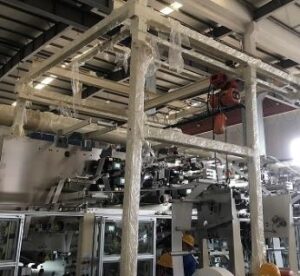

17.Gantry crane, easy to change the shape cutter unit
Full Servo Puerperium Sanitary Napkin 19



18.Glue applicator
Full Servo Puerperium Sanitary Napkin 20



19.Equip with full automatic sanitary napkin bagger (50-55 packs /minute)
Full Servo Puerperium Sanitary Napkin 21





Raw Materials

Material Name GSM
Fluff pulp 685g/ m2
Hydrophilic non-woven Or Perforated film as top sheet 16g/ m2
Tissue paper 15g/ m2
ADL /anion chip 35 g/ m2
Air laid paper
Absorbent paper
Back sheet PE film 24g/ m2
Packing film 32-35g/ m2
Central release paper
Wing’s release paper
SAP
Hot melt adhesive- construction glue , position glue

Raw materials store should meet these demands

1: Tray shelves are needed to put at the bottom of raw materials in case of damp and moisture.
2: Clean and clear environment, sealed and closed, no mosquito, no flammable and explosive and corrosive substances around. To keep normal temp. 15-30 ℃ inside the store is ok.
