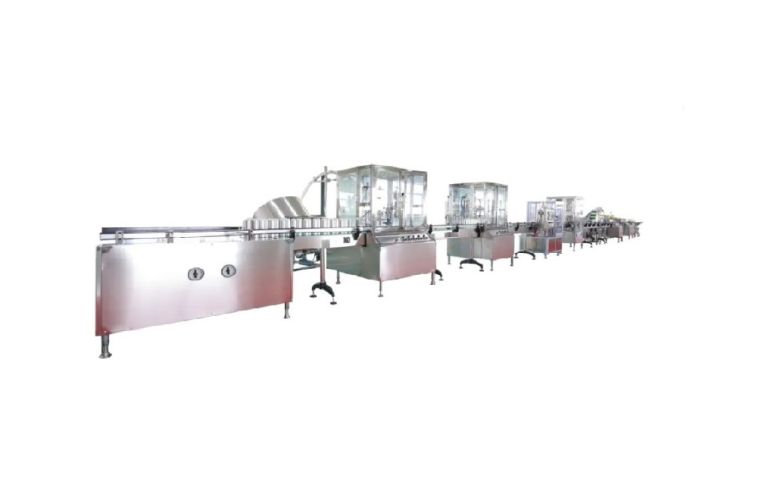

Automatic Aerosol Filling Machine is designed to produce conventional aerosols for simple and economical applications. It contains a cans arrangement machine, liquid filling machine, gas inflator. Fully automatic valve inserting equipment, automatic cap presser, an automatic weighing machine can be selected optionally. The line features all pneumatic control logic to address hazardous environment concerns while providing an easy-to-use system for maintenance issues.

Suitable for all typical aerosol products, such as:

• air freshener, deodorant, perfume, body spray, fragrance, toilet spray, disinfection spray.
• insecticide, mosquito killer spray, Insect killer, pesticide.
• spray paint, color paint spray, snow spray.
• pharmaceutical spray, engine cleaner, lubricants, detergents, leather spray, cosmetic spray,
• Shaving Gel Spray, Shaving Foam Spray.
• self-defense spray, pepper spray, food spray, wound spray, tyre repair spray, mould release spray.
• furniture spray, anti-rust spray, PU foam, fire extinguisher, and LPG cartridge.

PRODUCTION PROCESS

KEY BENEFITS:

• Fully pneumatic control

• Wide suitability

• High filling accuracy

• Easy to use and maintain

Technical Parameter

Main Features

1) Fully automatic machine contains cans arranging machine, rotary liquid filling machine, valve inserting machine, rotary sealing and gas filling, automatic weight checker, water bath, nozzle presser, cap presser, inkjet printer, packing table, etc.

2) It has intuitive and convenient operation, measuring accuracy.

3) Fully in accordance with the GMP standard production and passed CE certification.

4) No bottle no filling

5) High stable, High speed, High precision.

Detailed Images

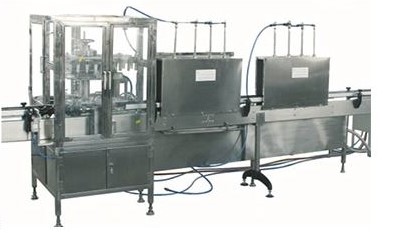

Liquid filling, Valve supplying& sealing machine

The turntable will choose valves automatically, the valves will be sent to the producing line from the pipe productivity. Under the airpower, putting the valves and press them on the can tightly. This machine has good capping quality, it saves labors and increases the working efficiency.

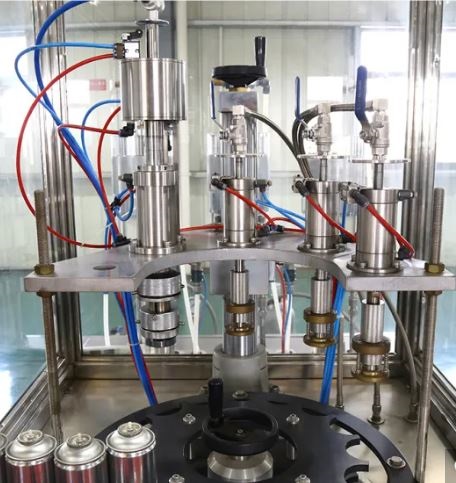

Sealing & Gas filling machine

Automatic crimping & gas filling machine are an independent table device. It has one set of valve sealing head and filling heads, also equipped with pressure boosters, gas storage tanks. All air control operations,  Sealing heads has an automatic locking device to stabilize sealing size. Will not filling gas if there are no cans there in filling heads.

Automatic weighing machine

This machine adopted advanced weighing sensor, Siemens PLC controlling system and Schneider low-voltage apparatus; the whole machine is fully explosion-proof, and with the function such as adjustable stepless motor, human-computer dialogue interface, related fault and waiting for feeding indicator, it could detect the weight of each finished can, and reject the unqualified can automatically.

 Automatic water bath leak tester

The machine has an explosion-proof motor and is equipped with an automatic overload breaker to guarantee the safety running. The explosion-proof electric heating tubes installed in the water tank can quickly heat up the water to the desired temperature and automatically control the temperature. The hanging jig is tightly clamped and will not be dropped off. The machine is attached to the automatic all-drying device.

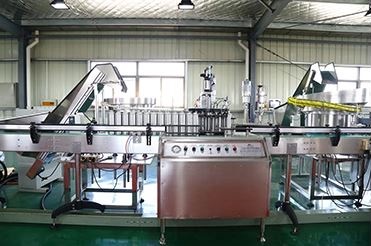

 Automatic spray nozzle presser

This machine consist of nozzle head machine, spray nozzle head presser and PLC programmed control, sort and conveyor of spray head, self-compress of the spray head, and aerosol cans, all can come true, It is excellence in high speed, low noise, and high automation.

Automatic cap presser

This is the last process of the finished product, this machine consists of cap arranging machine, cap presser and PLC programmed control, Can be finished sort and conveyor of a cap, self-compress of a cap, and aerosol cans, It is excellence in high speed, low noise, and high automation.
