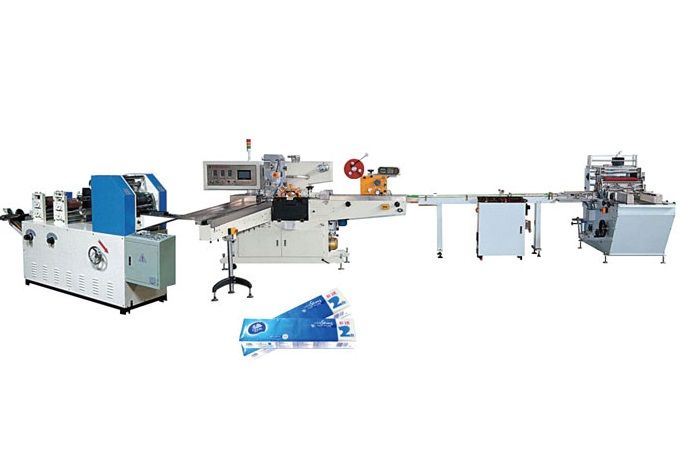

Pocket Facial Tissue Paper Folding and Packing Production Line

Facial tissue is sold in a variety of packages, including a small plastic film package commonly referred to as a pocket pack. These packages are convenient for keeping in pockets, purses, automobile glove compartments, etc. where the larger tissue cartons would be inconvenient or impossible to keep. Many of the pocket pack packages include a resealable opening to protect the unused tissues after the package has been opened.the user must manipulate the folded tissue to locate and grasp an edge in order to unfold and open it.

There are THREE machines are in the production line:
1. Pocket Tissue Folding Machine With Automatic Counting Device
2. Automatic Single Package Packing Machine With Labeling Device
3. Automatic Multi Packages Packing Machine

Part 1

Features of Pocket Tissue Folding Machine with Automatic Counting Device

1. The machine adopts with Delta PLC programming control.
2. Adopts trouble tracing and alarm system, the trouble can be found and solved more easily.
3. The driving system adopts advanced variable frequency speed regulating control.
4. The machine can be automatically separate each piece and accounting for the bundle for packing. No need separates and transfers by workers can save much labor cost.
5. Adopts ratio of the gear system, can eliminate the collision between loading tissue and pushing the bar to packing machine, which can improve working efficiency.
6. Adopts independent running control system, no need to change the packing machine, can connect to the packing machine easily.
7. Adopts adsorption folding style, can make tissue tidy and beautiful.

Pocket Facial Tissue Paper Folding and Packing Production Line 19

Technical Parameter

Dimension3850x692x1360mm
Jumbo Roll Width180-210mm
Max. Jumbo Roll Diameter1500mm
Jumbo Roll Core Inner Diameter76mm
Finished Product Size200/205/210mm
Finished Product Fold Size(65-115)x(50-53)mm
Embossing UnitSteel to Wool, Steel to Rubber, Steel to Steel
Separating Piece8/9/10 pcs
Speed70-75 bags/min
Weight1000kgs
Power2.2kw
Blower Power5.5kw

Pocket Facial Tissue Paper Folding and Packing Production Line 20

Part 2

Feature of Automatic Single Package Packing Machine With Labeling Device

  1. Adopts advance control of PLC programming and touch screen to set up.
  2. Adopts trouble tracing and alarm system, the trouble can be found and solved more easily.
  3. The driving system adopts advanced variable frequency speed regulating control and drive with a stepped motor, has the features of accurate control, and locating compact matched movement.
  4. With the automatic oil-filling circular lubricating system, the use life of the machine parts has been extended greatly.
  5. With adopting static electricity removing device, the packing effect is more perfectible.
  6. With an intelligent tem-controller, the temperature adjustment is flexible.
  7. Can be equipped with an auto-perforating device, which is for various tear-off outside.
  8. Automatically print production date and the location can be adjusted from up to down, from left to right.
  9. Automatic labeling on the outside package of the tear-off surface.

Pocket Facial Tissue Paper Folding and Packing Production Line 21

Technical Parameter

Dimension2840x2650x1720mm
Packing Size(70-110)x(50-55)x(20-28)mm
Design Speed110 bags/min
Stable Speed90-100 bags/min
Total Power4.68kw
Air Pressure0.5-0.6 mpa
Air Consumption2.5 cbm/H
Voltage380V,50Hz
Weight1650kg
Packing MaterialCPP, PE double-side heat sealing film

Pocket Facial Tissue Paper Folding and Packing Production Line 22

Part 3

Features of Automatic Multi Packages Packing Machine

  1. Adopts advance control of PLC programming and touch screen to set up.
  2. Adopts trouble tracing and alarm system, the trouble can be found and solved more easily.
  3. The driving system adopts advanced variable frequency speed regulating control and drive with a stepped motor, has the features of accurate control, and locating compact matched movement.
  4. With the automatic oil-filling circular lubricating system, the useful life of the machine parts have been extended greatly.
  5. With adopting static electricity removing device, the packing effect is more perfectible.
  6. With an intelligent term-controller, the temperature adjustment is flexible.

Pocket Facial Tissue Paper Folding and Packing Production Line 23

Technical Parameter

Dimension2500x3200x1550mm
Packing Dimension(150-330)x(70-150)x(20-48)mm
Packing Way3×2,5×2,6×2,3×3,5×3,6×3,x3x3x2
Design Speed12 bags/min
Stable Speed10 bags/min
Total Power3.5kw
Air Pressure0.5-0.6 mpa
Air Consumption2.5 cbm/H
Voltage380V,50HZ
Weight1200kgs
Packing MaterialCPP, PE double side heat sealing film

Samples                                                                                                                                                                               Pocket Facial Tissue Paper Folding and Packing Production Line 24

facial, folding, packing, paper, pocket, production, tissue
