PS Foam Food Container Extrusion Line

PS foam food container has wide applications in various field. This machine inherits all the merits of the original model, enhanced by new technology(2019) foam food container machine has wide adaptability and its Supply Ability is 100 Set/Sets per Year fast food box machine.


PS Foam Food Container Extrusion Line 1

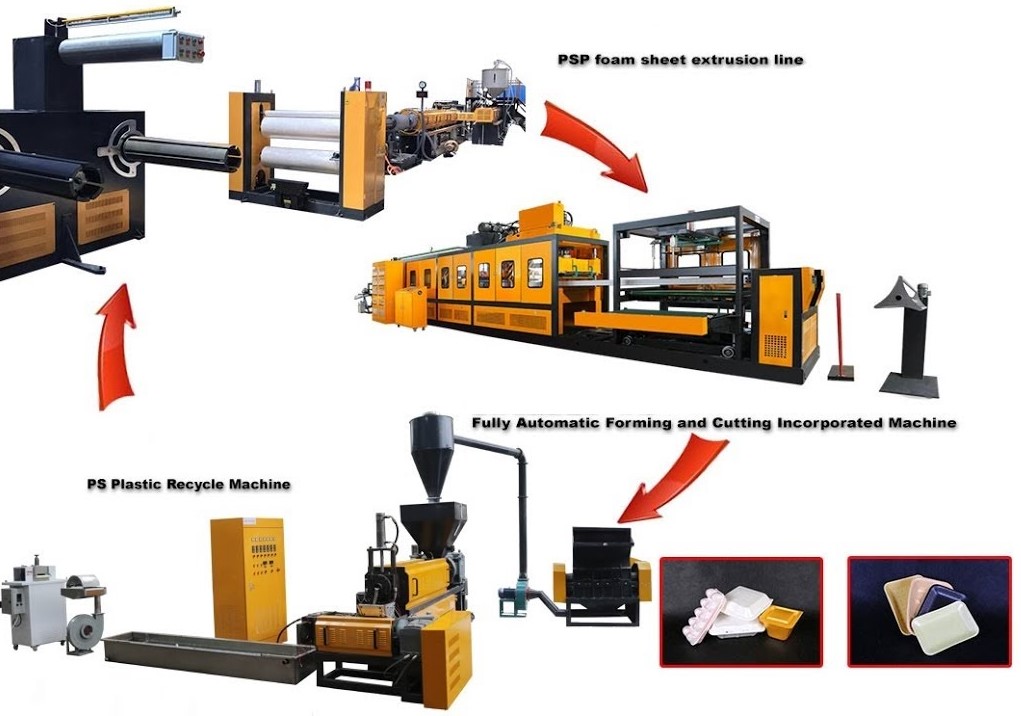

PS Food Container Machine mainly including three main parts

  1. PS foam sheet extruder: make PS foam sheet from raw material.
  2. Fully auto forming and cutting machine: make PS sheet to finished products, such as PS foam tray, PS foam box, etc (we can design mould according to customer requirements).
  3. Plastic recycle machine: recycle waste products to granules, the can mix with new material and put into PS foam sheet extruder again.

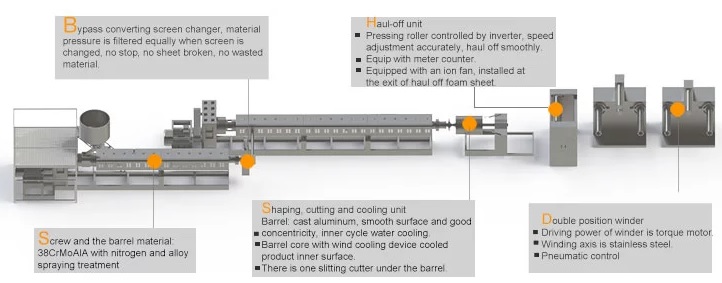

1.  PS Foam Sheet Extrusion Line

PS Foam Food Container Extrusion Line 2
  1. This production line adopts double-screw foam sheet extrusion technology.
  2. PSP foam sheet is a kind of new-type packing material with the features of heat preservation, safety & sanitation.
  3. It is mainly used to make various types of food containers, such as lunch boxes, dinner trays, bowls, etc.
  4. It is also can be used to make advertisement boards, industrial product packing, and so on.
  5. It has stable performance, big capacity, high automation, and high-quality products.
Specification Parameter
screw diameter mm 75/90 105/120 120/130 135/150 180/200
foam rate 10-20 10-20 10-20 10-20 10-20
width of product mm 640-1040 640-1200 640-1200 640-1200 1000-1350
cutting method single cutter single cutter/double cutter
thickness of product mm 1.0-3.0 1.0-4.0 1.0-4.0 2.0-5.0 2.0-5.0
capacity kg/h 50-90 160-240 200-280 280-360 450-650
total power kw 140 200 220 260 400
total weight T 10 13 14 16  23

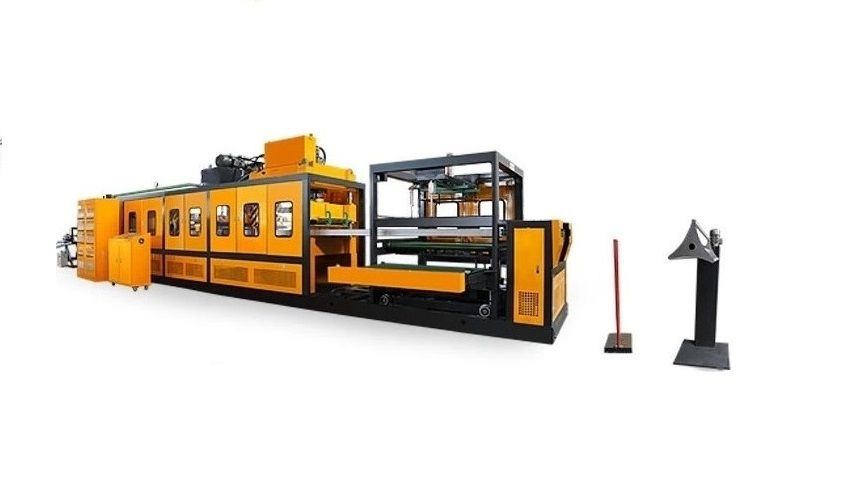

2.Fully Automatic Forming and Cutting Machine

PS Foam Food Container Extrusion Line 3 Forming cutting, stacking is done in the same machine, saving labor, improving efficiency, lowing labor, intensity, and reducing production cost. The production process is to put foam sheet into forming machine, and product and wastage will come out from the rear part. Two workers are enough for the whole production line. It can be used to produce many kinds of materials. The product can be used in food, medicine, electronic parts, tourism, toys, etc. Specification Parameter
max. forming area mm2 1000*1100 1100*1380
max. forming depth mm 80 100
production efficiency s/mould 43529 43529
forming pressure T 15 15
heating power kw 108 142
total power kw 168 204
total weight T 15 16

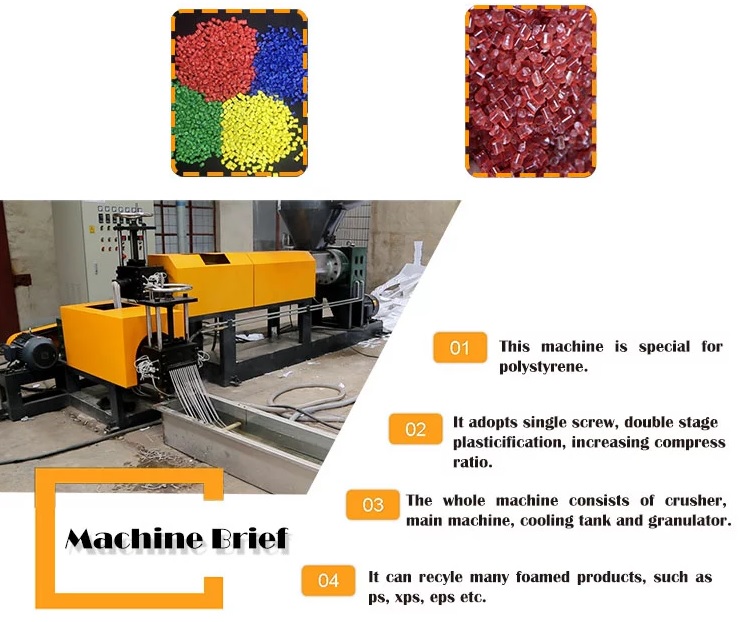

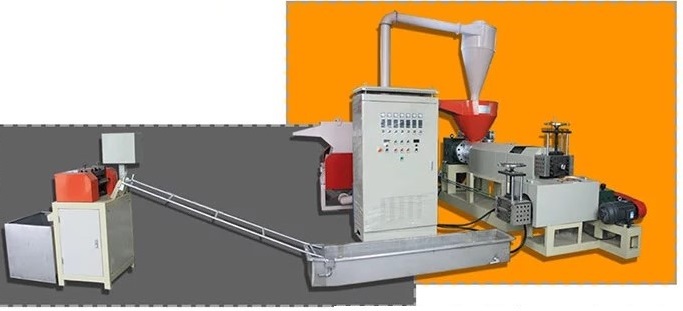

3. Recycling Machine

PS Foam Food Container Extrusion Line 4 PS Foam Food Container Extrusion Line 5Specification Parameter
screw diameter mm 180+120/100
motor power kw 22
heating power kw 25
capacity kg/h 80-130
granulator motor kw 2.2
cooling water tank m 2*0.4*0.28
 Granule cutting motor kw 2.2 packaging & shipping

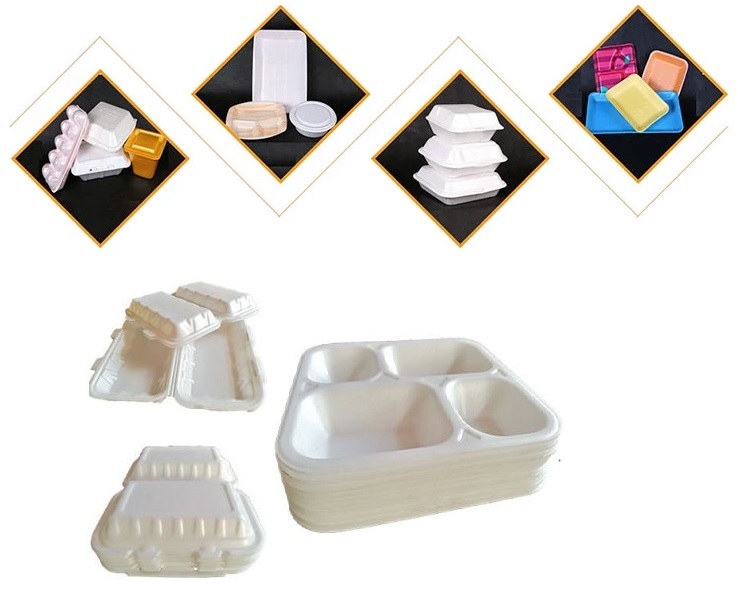

Finished Products

PS Foam Food Container Extrusion Line 6

container, extrusion
