Single Screw 3D Printing Filament Production Line

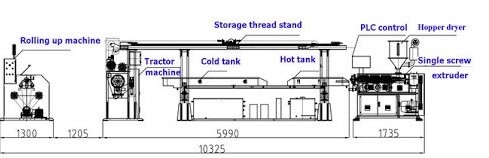

3D printing materials are a new type of high-tech printing material and widely used in the civil and military market, which is emerging on current international high-tech printing materials. Plastic 3d printing materials mainly include material ABS, PLA. Its application can be widely used in scientific research, teaching, market application, civil, military, and other fields. 3D printing will be into the life of people in the future, just like we use computer. Real dispense open mold, proofing, production, distribution agents, department store, a lot of links such as consumers, then platform shoes, cups, toys, and so on. All things in our life can be achieved by 3D printing production and use, and completely change the traditional mode of production and ways of distribution. It will be a high-tech technology revolution. Feature: I. Before produce extruding filament, we will dry for enough time (3-5 hours). II. Mix with colors masterbatch or colors powder, all which .certified with ROHS. Single Screw 3D Printing Filament Production Line 1                             Layout of 3D printer filament extrusion (Supply Ability:200 Set/Sets per Year)

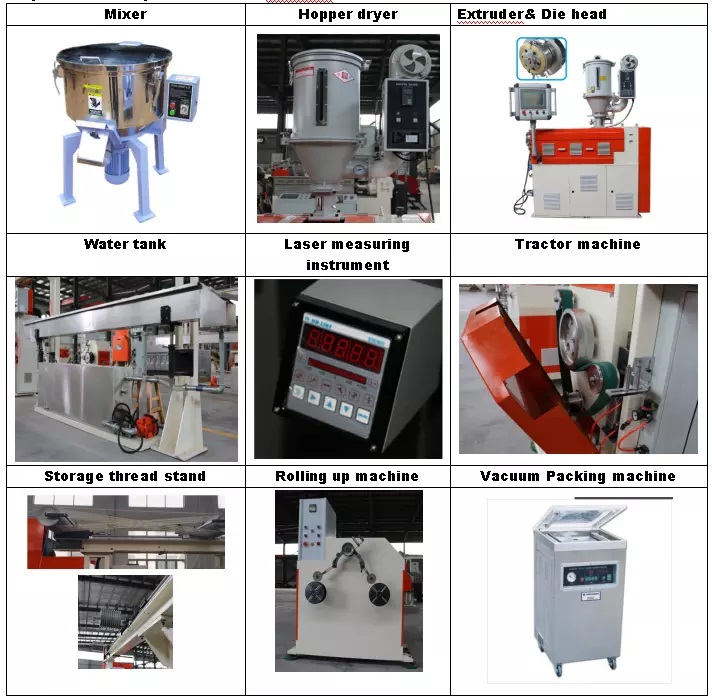

Machine Composition

Item Equipment Line QTY
1 Mixer 1
2 Hopper dryer 1
3 Single screw extruder 1
4 Die head 1
5 Water tank 1
6 Tractor machine 1
7 Storage thread stand 1
8 Laser measuring diameter instrument 1
9 Rolling up machine 1
10 Vacuum Packing machine 1

Detailed Pictures

Single Screw 3D Printing Filament Production Line 2

PLA plastic filament extruder 3D printer filament making machine          date sheet

Screw Diameter (mm) 16 25 35 45 65
Screw L/D 20:01 25:01:00 25:01:00 25:01:00 25:01:00
Heating zone 3 3 3 3 4
Producing speed(m/min) 10-Aug 40-60 60-80 60-100 60-200
Raw material PLA,ABS,PA,PET,HIPS etc
Filament diameter(mm) 1.75, 3.00 1.75, 3.00 1.75, 3.00 1.75, 3.00 1.75, 3.00
Tolerance (mm) +/-0.05 +/-0.03 +/-0.03 +/-0.03 +/-0.03
Power(kw) 0.4 3 4 7.5 15
Capacity(kg/h) 2-Jan 5-Mar 15-Aug 15-30 30-50


It is already widely used in health care, education, toys, building, automobile, electronics, and anime field.   Single Screw 3D Printing Filament Production Line 3


Single Screw 3D Printing Filament Production Line 4

filament, printing, production, screw, single
