Fully Automatic Tissue Paper Folding and Packing Production Line
Tissue products are soft, thin, and absorbent sheets of paper. They are disposable products designed for a single-use. It is mainly defined by its softness and fabric-like feel. They contribute to improved hygiene, comfort, and convenience in our society. The companies in the group oversee the entire production process, from tissue production to processing, all the way to the finished product. Here, you can see the Tissue Paper Folding and Packing Production Line.
Production Capacity: 80m/min
Supply Ability: 20 Units per Month
There are Five Machines in this Production Line to complete the Finished Product, They are
The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders and then interfolded into inter overlapped rectangular tissue sheet. This machine adopts independent servo motor driving, Automatic sipped, Electrostatic treatment, Security system, Automatic cutting and stop, Automatic tension adjustment, Base paper power struggle, and Automatic making functions.
Specification of 10L Tissue Machine
This machine can reach a high speed with nice folding and easy for operating.
1. Equipped with steel to steel embossing roller, pneumatically separating.
2. Adopts Wallboard rack and can running stable at an extremely fast speed.
3. Adopts Pneumatic jumbo roll loading with step-less speed adjustment and automatic paper tension adjustment.
4. Equipped with roots type vacuum pump for stable running of the machine.
5. Insertion Point counting, simple and practical.
6. Equipped with edge embossing unit to keep the plies together.
7. The machine will stop when the paper is broken. It can avoid waste caused by no paper or paper broken.
8. Adopts jogging switched for wearing the paper, easy and safe to operate.
Cyclotron paper cutter is used to automatically cut off a row folded and round roll paper towel products, such as the removable tissue or toilet roll paper.
The whole machine adopts servo drive technology and frequency control of motor speed and enhances the stability of paper cutting and improves the cutting precision of tissue and to cut off the end face flat.
Cutting length within the scope of the machine allows arbitrarily adjustable.
Adopting packing way by wrapping, folding, and sealing with compact structure, it makes the package look beautiful and the seal tightened. Controlled by step-less speed regulation, touch screen, and PLC, the display on the human-machine interface makes maintenance more simple. Applied with auto-arranging feeding conveyor, it is convenient to connect the conveyor with an automatic production line, saving the labor cost to the maximum.

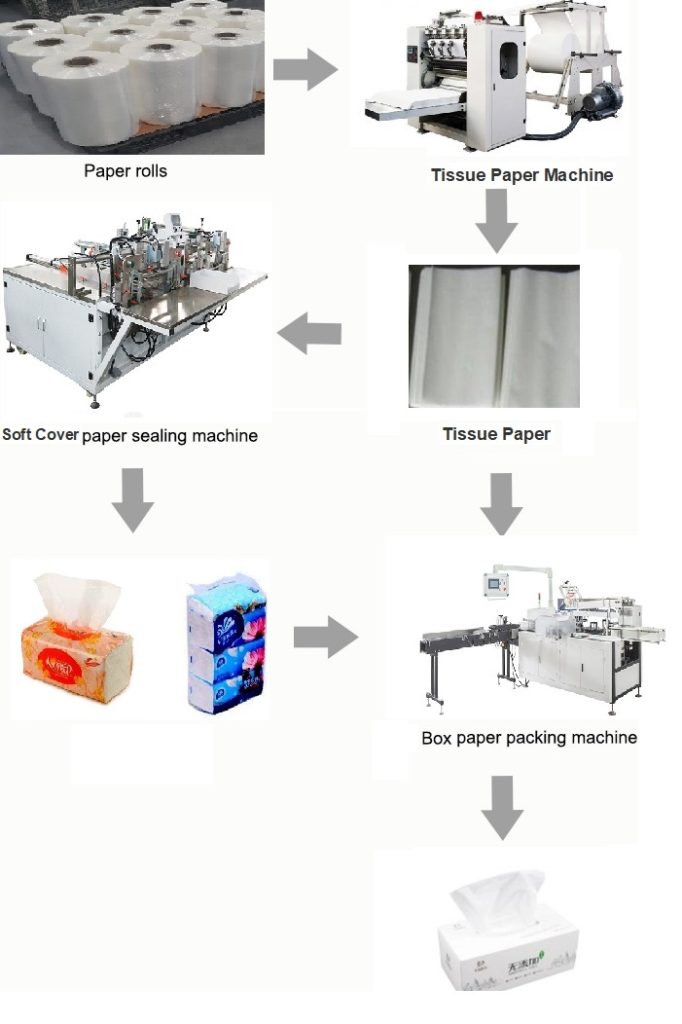

Production Process
Production Capacity: 80m/min
Supply Ability: 20 Units per Month

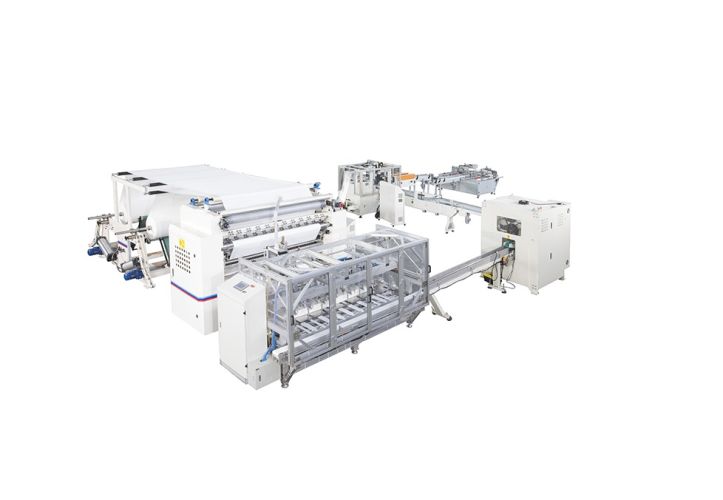

Complete Production Line Display
Technical Parameters
| Production Capacity | 80m/min |
| Finished Products Unfolded Size | 180*180mm |
| Folding Products Size | 90*180mm |
| Raw Material Width | 2000mm |
| Raw Material Diameter | 1200mm |
| Raw Material Core Diameter | 76.2mm |
| Output Capacity (8 hours) | 2000-3000kg |
| Embossing Unit | Steel to rubber |
| Edge Embossing | Steel to steel edge embossing |
| Slitting Unit | Pneumatic slitting |

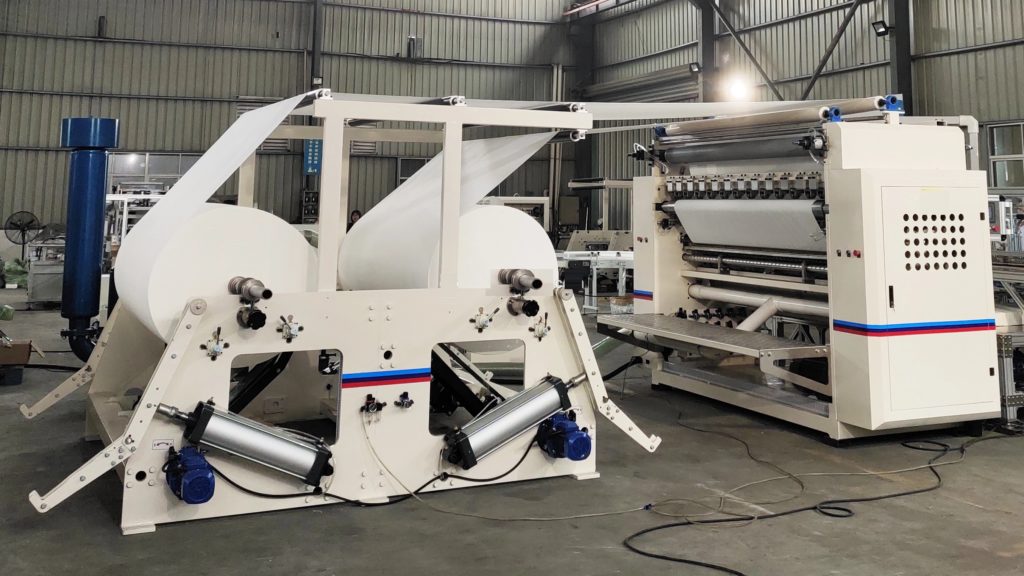

PART 1: Tissue Machine 10L
The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders and then interfolded into inter overlapped rectangular tissue sheet. This machine adopts independent servo motor driving, Automatic sipped, Electrostatic treatment, Security system, Automatic cutting and stop, Automatic tension adjustment, Base paper power struggle, and Automatic making functions.
Specification of 10L Tissue Machine
This machine can reach a high speed with nice folding and easy for operating.
1. Equipped with steel to steel embossing roller, pneumatically separating.
2. Adopts Wallboard rack and can running stable at an extremely fast speed.
3. Adopts Pneumatic jumbo roll loading with step-less speed adjustment and automatic paper tension adjustment.
4. Equipped with roots type vacuum pump for stable running of the machine.
5. Insertion Point counting, simple and practical.
6. Equipped with edge embossing unit to keep the plies together.
7. The machine will stop when the paper is broken. It can avoid waste caused by no paper or paper broken.
8. Adopts jogging switched for wearing the paper, easy and safe to operate.
PART 2: Log Saw Cutting Machine
Cyclotron paper cutter is used to automatically cut off a row folded and round roll paper towel products, such as the removable tissue or toilet roll paper.
The whole machine adopts servo drive technology and frequency control of motor speed and enhances the stability of paper cutting and improves the cutting precision of tissue and to cut off the end face flat.
Cutting length within the scope of the machine allows arbitrarily adjustable.

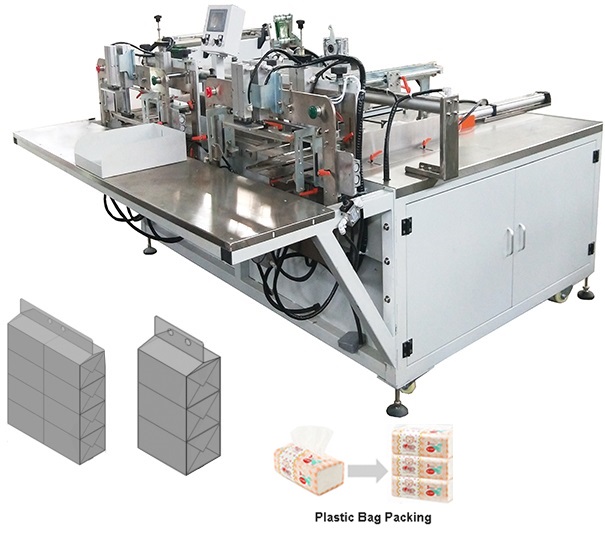

PART 3: Plastic Packing Machine (Single Bag Packing+Multi Bag Packing)

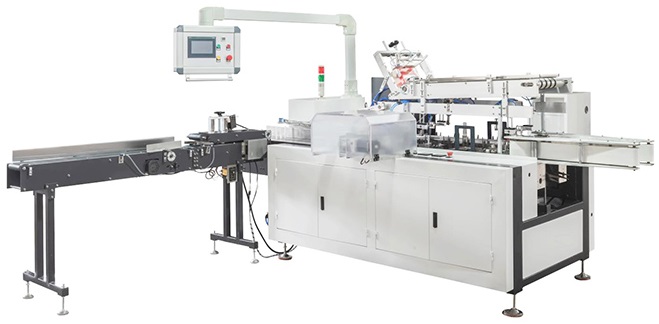

PART 4 Carton Box Packing Machine (Single Carton Box Packing + Multi Carton Box Packing)
- Adopt automatic feeding, insert box, coding, and sealing. Reasonable compact structure, easy operation.
- Adopt a servo motor, touch screen, and PLC programmable control system, Interface display make it simple and clear, the high degree of automation, humanized.
- Using a photoelectric automatic tracking system, only packing when it senses the paper, which can save packing material.

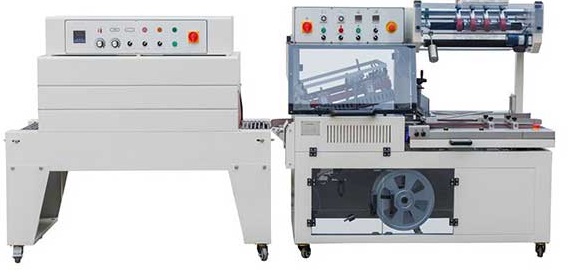

Part 5: Shrinking Packing Machine
Adopting packing way by wrapping, folding, and sealing with compact structure, it makes the package look beautiful and the seal tightened. Controlled by step-less speed regulation, touch screen, and PLC, the display on the human-machine interface makes maintenance more simple. Applied with auto-arranging feeding conveyor, it is convenient to connect the conveyor with an automatic production line, saving the labor cost to the maximum.
Samples
