UV COATING PRODUCTION LINE FOR FURNITURE

UV roller coating line is combined with a dust cleaning machine, roller coating with putty, and UV dryer. This line is designed for the small furniture factory with a small capacity. Also suitable for those who want to change the painting work from coating by hand to coating by machine.

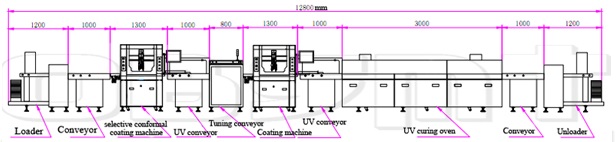

PRODUCTION PROCESS

UV COATING PRODUCTION LINE FOR FURNITURE 1

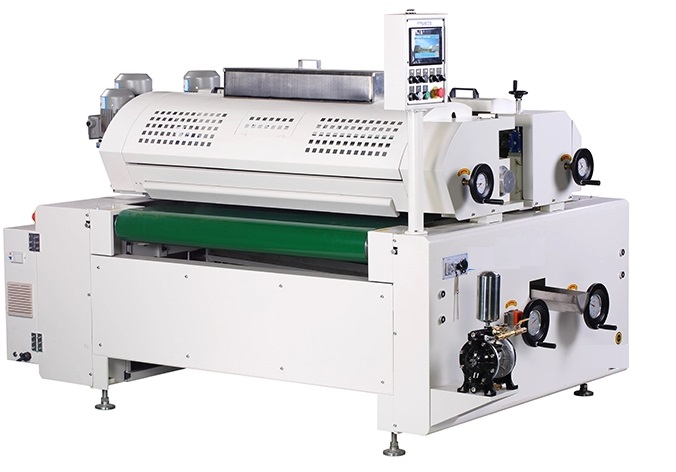

Machine Details

1. This machine is available to the base/surface paint coating for the furniture/flooring/cabinet/walling/decorative boards, which different materials like wood/MDF/plastic/metal/glass and so on.
2. It can ensure the surface of the paint to be smooth, with good plumpness, and with no chromatic difference.
3. The roller coater can coat the putty, transparent primer, pigments, topcoat.
 4. UV dryer with three lamps, one is gallium lamp and two is a mercury lamp
 5.Dust cleaning machine with two brush inside the machine to clean the surface
UV COATING PRODUCTION LINE FOR FURNITURE 2

Technical Parameter

Working width 620 mm/1320 mm
Working thickness 2-80 mm
Minimum length 300 mm
Feeding speed 0-20 m/min
Feeding power 1.5 kw
Coater roller power 1.5 kw
Coating power 0.75 kw
Heating power 1.5 kw
Machine size 3000mm×1850mm×1400mm

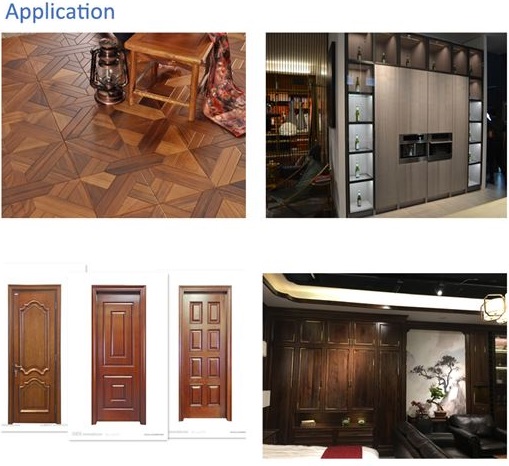

Application Plywood, solid wood, particleboard, HPL, PVC, WPC, SPC, metal, glass, plastic, ceramic tile, calcium silicate board, cement fiberboard, gypsum board, melamine board, stainless steel, vermiculite board

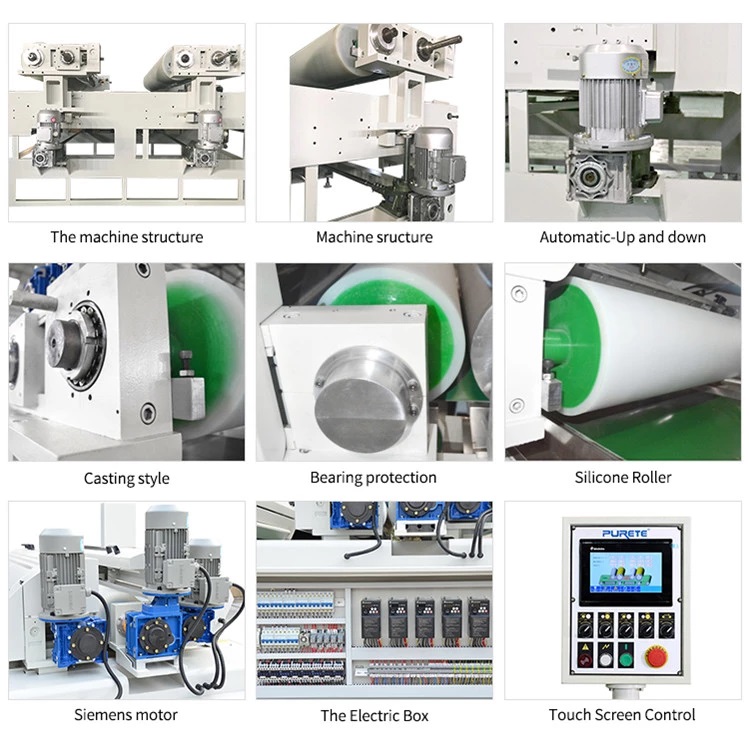

Accessories

UV COATING PRODUCTION LINE FOR FURNITURE 3

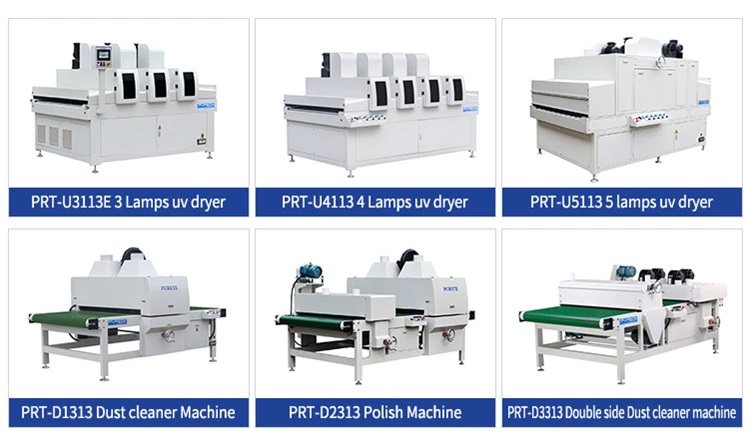

Other Machines

UV COATING PRODUCTION LINE FOR FURNITURE 4 UV COATING PRODUCTION LINE FOR FURNITURE 5

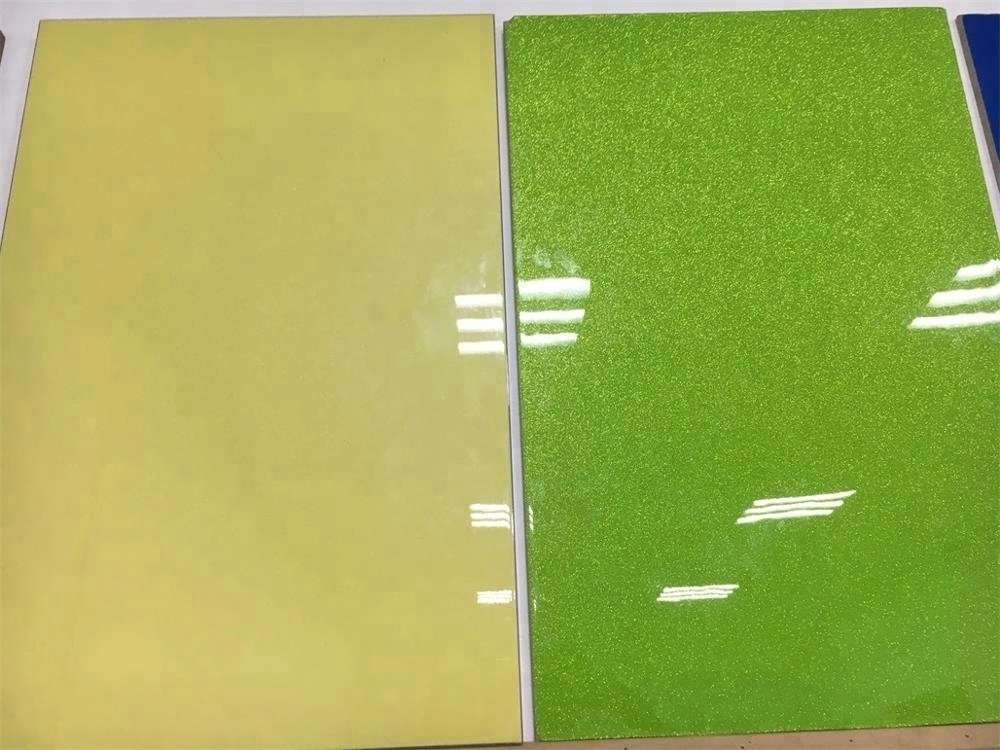

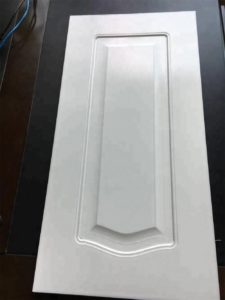

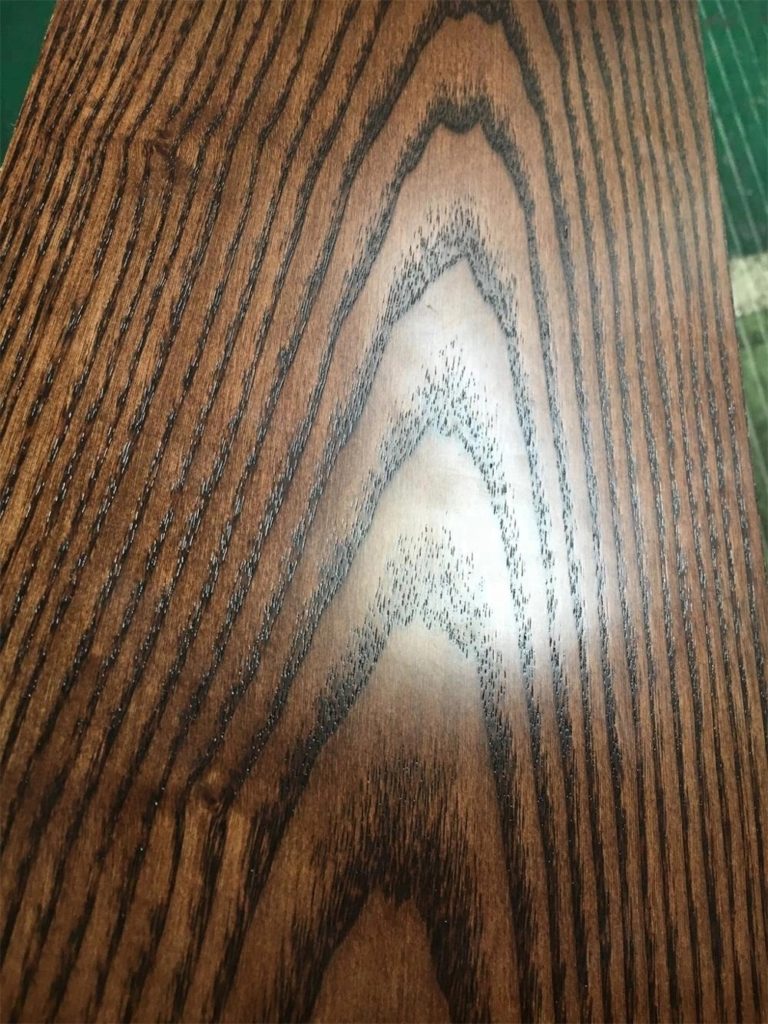

Samples

UV COATING PRODUCTION LINE FOR FURNITURE 6      UV COATING PRODUCTION LINE FOR FURNITURE 7 UV COATING PRODUCTION LINE FOR FURNITURE 8    UV COATING PRODUCTION LINE FOR FURNITURE 9
