Artificial Grass Mat Production Line

Artificial grass lawn production line is mainly used to produce all sorts of artificial grass lawns. The sorts of the artificial grass lawn are Sports grass lawn and landscaping grass lawn. he bottoms are designed with antiskid patterns, features antiskid, anti-abrasion, anti-erosion, and long service life. The grass tips can brush the dust particles from the grass surface onto the lawn bottom, which keeps the mat clean. Only need to turn the mat over, flap it, and wash with water when cleaning.

Production Process

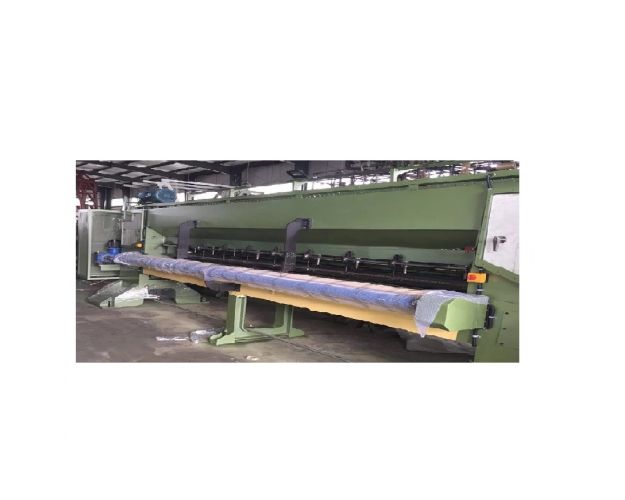

Artificial Grass Mat Production Line 1 Product Features:
  1. Supply Ability:10 Set/Sets per Year

  2. Can use 100% recycled material, powder, or grain PP flat yarn.

  3. Extruder screw and barrel adopt 38CrMoAl alloy steel after nitrogen treatment, low noise, wear, and corrosion resistance.

  4. An extruder equipped with a dedicated reducer, gear, and shaft parts are of high strength alloy steel, carburizing, quenching, grinding, and other processing techniques, and with a super-size mega thrust bearing, with carrying capacity high, smooth transmission, efficiency notable features.

  5. Using air cooling extruder barrel, cast aluminum heating coil heating method for heating, durable

1.Width of Tuft. Pile Height. Gauge and Pattern

S.No  Gauge  Pile Height Width of Tuft  Pattern
     1 5/16G 20-60mm 2000mm/4000mm cut pile
     2 5/32G 6-18mm 2000mm/4000mm cut pile
     3 3/8G 30-60mm 2000mm/4000mm cut pile
     4 3/16G 20-40mm 2000mm/4000mm  cut pile

2.Stitch Length: 2-10 mm  (adjustable)

3.Max Slewing Rate  300rpm-600rpm

4.Power Output2x15KW,      3Phase 380V 50HZ

Artificial Grass Mat Production Line 2

Yarn shelves

Artificial Grass Mat Production Line 3                 The full sets of artificial grass yarn shelves.

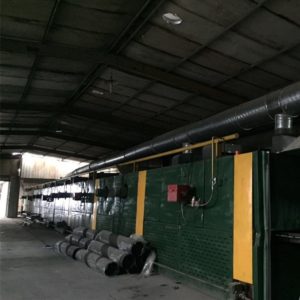

Heating oven

Artificial Grass Mat Production Line 4                 Drying device

woven showing

Artificial Grass Mat Production Line 5 Yarn weaving  Device

Tufting Showing

Artificial Grass Mat Production Line 6 Yarn Tufting Device

Semi-Finished Product

Artificial Grass Mat Production Line 7 Artificial Grass Mat Production Line 8

 Back Coating Process

Artificial Grass Mat Production Line 9

Finished Product

Artificial Grass Mat Production Line 10          Artificial Grass Mat Production Line 11
